Calculating Roof Load Width

Calculating Roof Load Width. If i assume the two numbers you gave, 2200 mm and 4800 mm, are. Therefore for your roof, 0.05241 = rise / run.

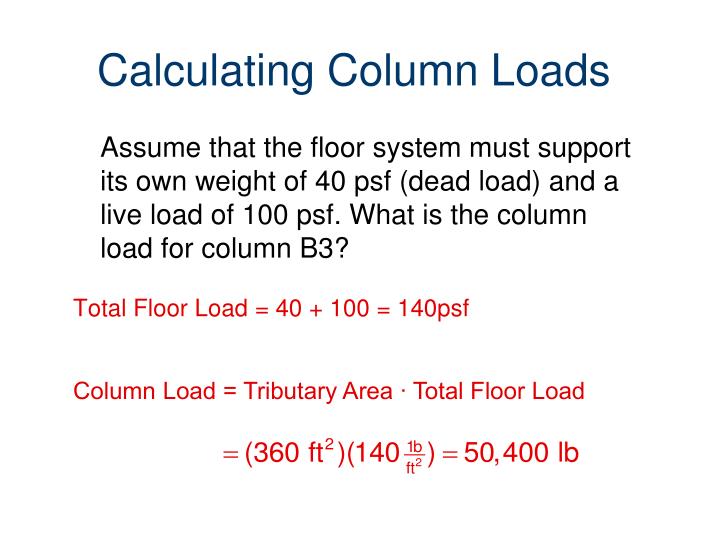

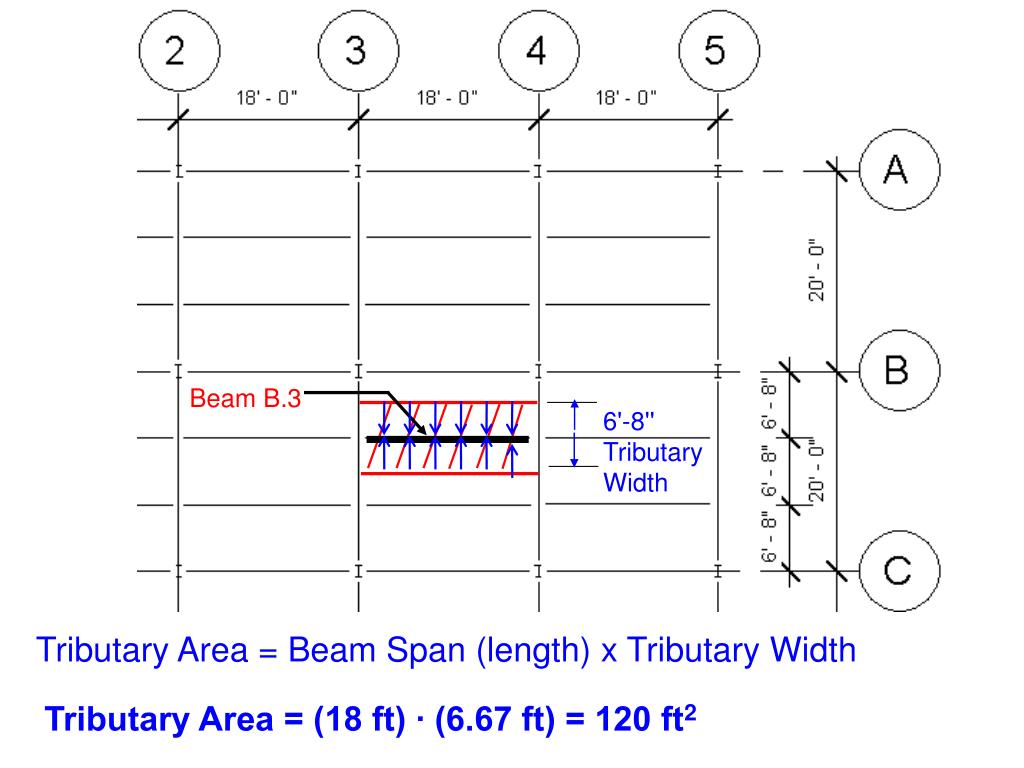

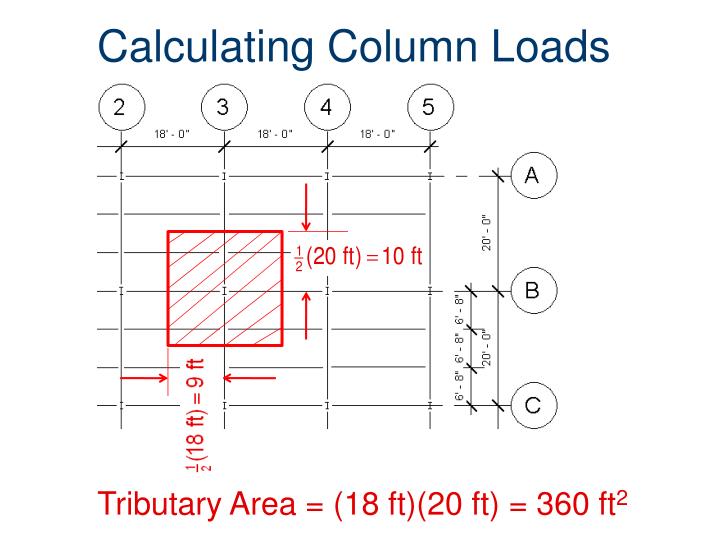

PPT Loads and Load Paths PowerPoint Presentation, free download ID from www.slideserve.com

Rlw is used to calculate the sectional size of s. Nothing is more important to the team at srs than the safety of our clients and their properties. Find the length and width of the building’s exterior walls.

Source: design.medeek.com

The size of the roofing material is needed to calculate how much load the roof members and substructure need to support, and therefore what size the underlying timber parts need to be. Ask yourself what load is going onto a member.

Source: www.slideserve.com

This video looks at ceiling load width (clw). The size of the roofing material is needed to calculate how much load the roof members and substructure need to support, and therefore what size the underlying timber parts need to be.

Source: www.slideserve.com

To calculate the weight of snow on your roof, use the first two sections of our snow load calculator provided by omni calculator. Roof structure and load bearing capacity.

Source: www.slideserve.com

This video looks at ceiling load width (clw). In the simplest of terms, this is the amount of force (temporary or transient) acting on a building.

Source: www.slideserve.com

First step, lets collect all the given information within the question: This video looks at ceiling load width (clw).

Source: skyciv.com

That is why we work hard to optimize safety by. To calculate the weight of snow on your roof, use the first two sections of our snow load calculator provided by omni calculator.

Source: www.contractortalk.com

Determining basic wind speed (v b). 24th august 2010, 01:40 pm #1.

Source: www.alibaba.com

This is the sixth video in the series on the timber framing code. To use this online calculator for roof live load, enter reduction factor for size of tributary area (r 1) & reduction factor for.

Source: sketchup3dconstruction.com

This video looks at roof load width (rlw). For the example of the osb board:

For Your 3 Degree Slope Case:

Clw is used to calculate the sectional size o. The calculated area is only an estimation. Ask yourself what load is going onto a member.

Find The Length And Width Of The Building’s Exterior Walls.

You will then use the following formulas to. Density/100 * thickness = area dead load. The calculation of load width and roof area supported is easily understood if you consider the load on a structural member.

Roof Load Width (Rlw) = Rafter Span (If Placed At Midspan) Otherwise ½ Span1 + ½ Span2.

Add live load depending upon whether the roof has. In order to calculate the wind load or wind pressure on external surfaces of a pitched roof, we are going to do the following steps: Roof loads are used to determine the size of beams, joists and columns that support a roof.

= 720 Pounds Per Lineal Foot.

Nothing is more important to the team at srs than the safety of our clients and their properties. The area load is calculated as: If you can't measure along the top chord, divide the span (horizontally from plate to plate) by 2 then with a scientific calculator divide by cos.

Calculate The Wind Velocity Pressure Q P.

This is the fifth video in the series on the timber framing code. In this example, it’s the wind. Ceiling not attached to rafters and a snow load of 30 psf:
